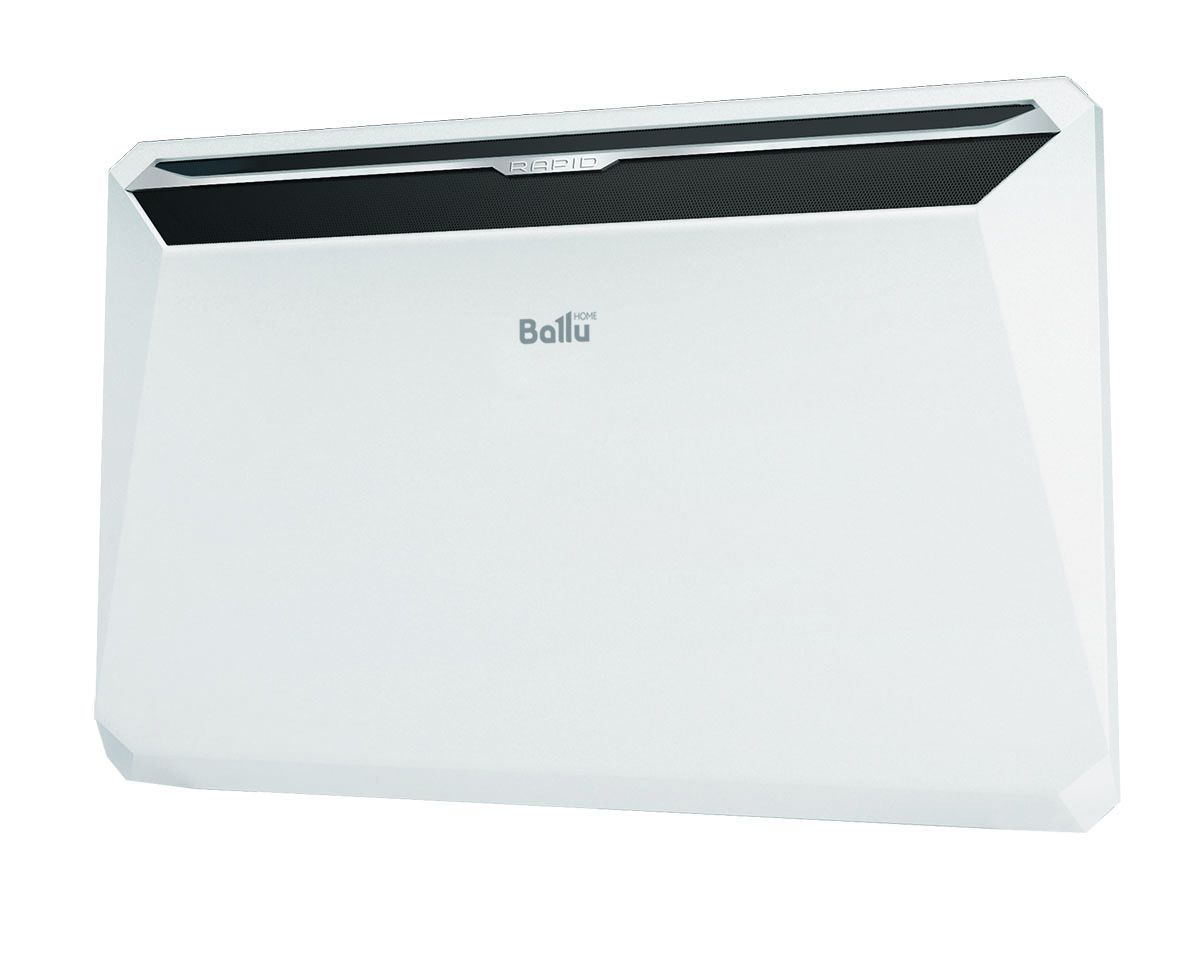

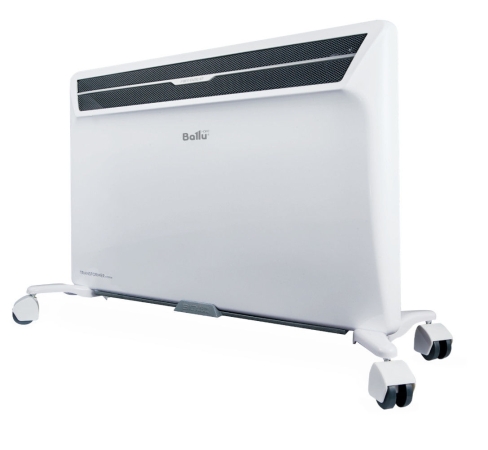

BALLU Energy-saving convector with inverter BCH/R-2200 EI electric 2200W IP24 with the option of connecting a WIFI module
BALLU Energy-saving convector with inverter BCH/R-2200 EI electric 2200W IP24 with the option of connecting a WIFI module
The Ballu Rapid-2200 is the perfect solution for quick heating and uses airflow for heating. Thanks to the built-in digital inverter Rapid regulates the set temperature fully automatically from + 5 °C to 35 °C continuously depending on the difference between the target and the actual temperature in the room. This brings you energy savings of up to 30% compared to conventional convectors. The Rapid convector does not burn dust or oxygen. HEDGEHOG is a new generation silent monolithic heating element that is 20% more compact and more efficient than standard heating elements, so you can heat the room quickly and efficiently.
Thanks to the natural air circulation, you have more even heat in the room than other heat sources. Antifreeze sensor equipped so that the temperature in the room does not fall below 5°C. The Ballu-Rapid-2200 is also equipped with an automatic "restart function", which means that your settings will be saved in the event of a power failure. The convector heater is equipped with a child safety lock. time programs, including 5 fixed and 1 user program. You can also set the date and time. If you forget to close the window, the Ballu Rapid-2200 is equipped with a "window open" function button. This means that the convector detects an open window and switches off the heating.

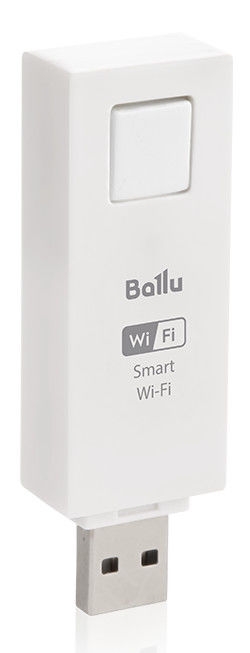

Rapid can optionally be equipped with a WiFi module.
Properties
- Parental control
- Digital inverter stepless regulation of the power of the heating element
- Silent
- Adjustable temperature from + 5 ° C to + 35 ° C
- Does not burn dust or oxygen
- Up to 30% electricity savings
- Timer
- Window opening function
- 5 fixed time programs
- 1 user program
- Weekly program
- Monolithic heating element of the new generation, silent and 20% more compact
- Increased air intake
- Monolithic aluminum alloy construction
- High precision electronic thermostat
- New technology for fixing the heating element

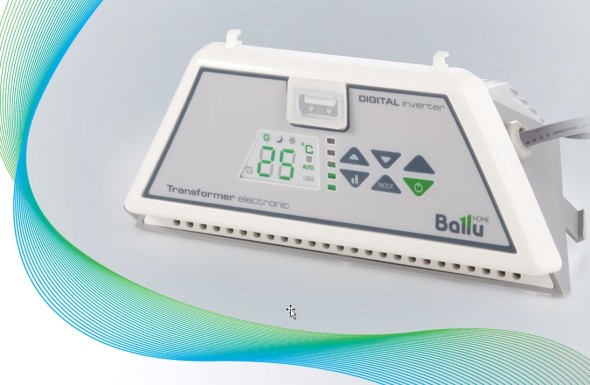

- LED display and control with digital temperature display
- Reinforced feet for floor mounting, wall bracket
- Overheat protection sensor
- Emergency shut-off in the event of tipping or overturning
Specifications
- Operating voltage: 220-240 V, 50 Hz
- Max. Power consumption: 2200 W
- Size: 80x12.9x41.3 cm
- Weight: 4.4 kg
- Size of the heated room: 30m²
- Installation: Wall, floor
- Protection: IP24
- Plug: 1.2m with EU plug
Downloads
User manual
*.pdf ; 7.9 MB
Technical specifications
*.pdf ; 392.3 kB
Ostatní dokumenty
*.pdf ; 4.3 MB
| Method of assembly | Standing / wall-mounted device | Protection against overheating | Yes |
| Protection class | I | Freeze protection circuit | Yes |
| Color | White | Digital display | Yes |
| Width | 800 mm | Temperature setting | 5 - 35 °C |
| Execution | Convector with frost protection | With protection against overheating | Yes |
| Height | 413 mm | Electrical connection | 1/N/PE ~ 230 V |
| Depth | 129 mm | Power from / to | 2,2 kW |
| Weight | 5.38 kg | Degree of protection (IP) | IP24 |
| Number of switch positions | 2 | Control via App | Yes |
| Regulation type | Electronic | Window opening detection | Yes |
