BALLU Panel BIH-AP4-2.0 2000W infrared heating
BIH-AP4-2.0 steel body and stainless steel elements
- The most compact and thinnest IR heating panels on the market
- Patented trapezoidal panel shape
- Power 2000 W
- High degree of protection against dust and moisture IP54
- Protection class I
- Heated area up to 40 m2

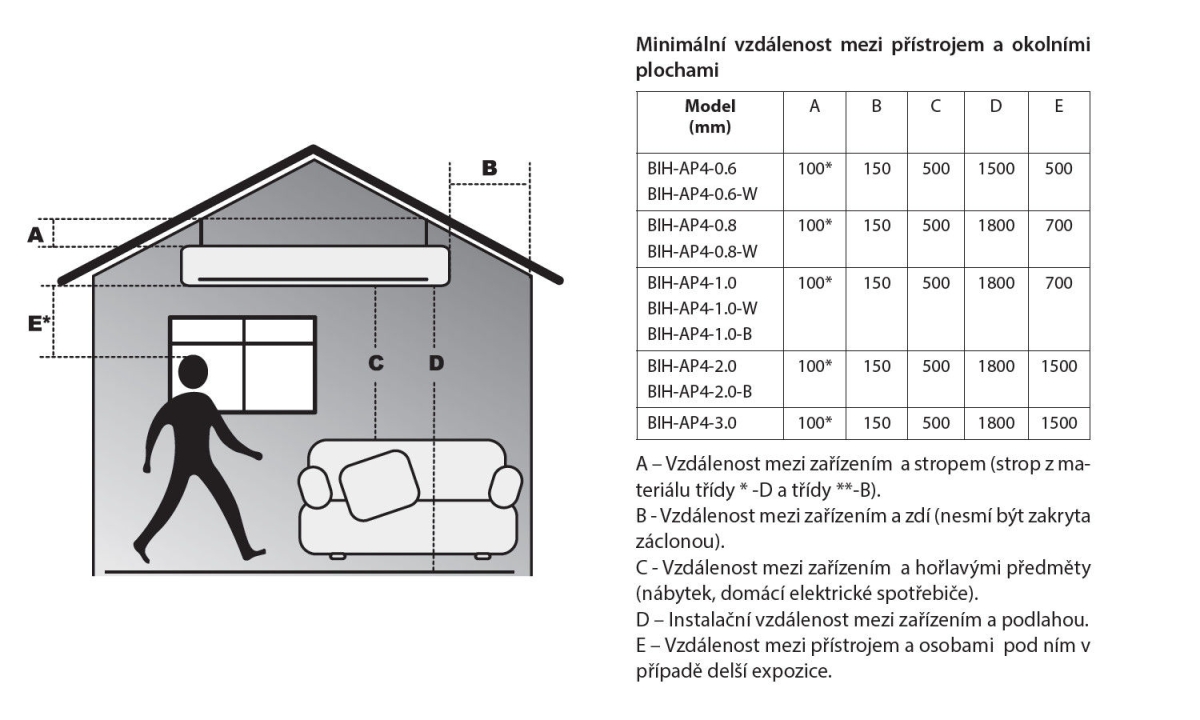

- Installation height 2.4 - 4.5 m
- Anodizing of 25 microns guarantees long-term efficient work and maintains an unchanged appearance

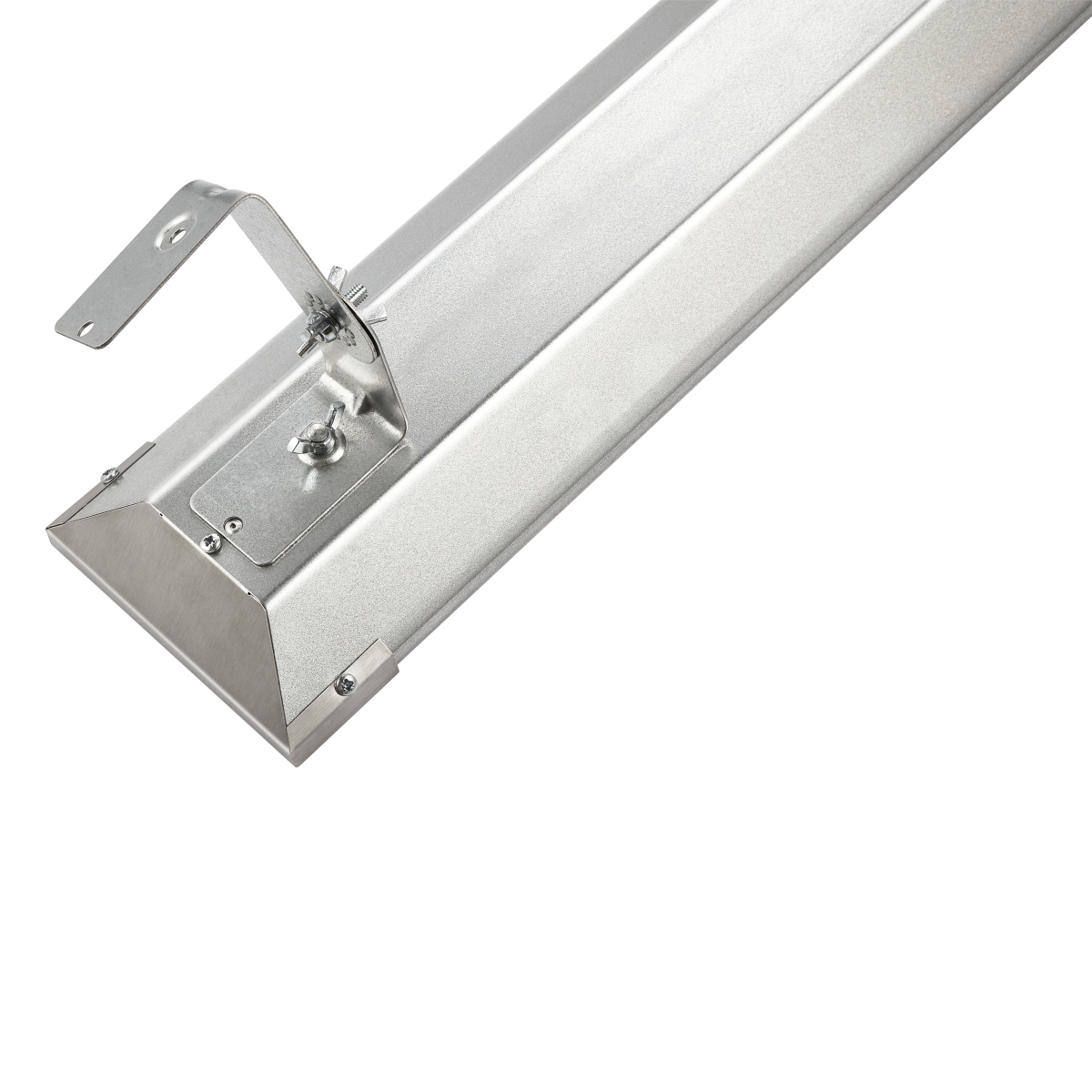

- Universal swivel mounts with sash hardware included
- The possibility of hanging IR heaters on the ceiling or wall at an angle with a step of 30 °
- Possibility of direct hanging on threaded rods
- Extended warranty for 3 years
Manufacturer
Ballu
Manufacturer code
BIH-AP4-2.0
EAN
2250000301272
State
new
Guarantee
2 years
Performance
2000 W
Parameters:
- Power 2000 W
- Nominal voltage 230 V
- Rated current 8.7 A
- High degree of protection against dust and moisture IP54
- Protection class I
- Heated area up to 40 m2
- Installation height 2.4 - 4.5 m
- Dimensions (wxhxd) 280x55x1250 mm
- Weight 5.0 kg
Downloads
User manual
*.pdf ; 1.1 MB
| Width | 280 mm | Voltage range | 230 V |
| Execution | Ceiling / wall radiator | Number of heating levels | 1 |
| Height | 55 mm | Degree of protection (IP) | IP54 |
| Depth | 1250 mm | Max. heating power | 2000 W |
